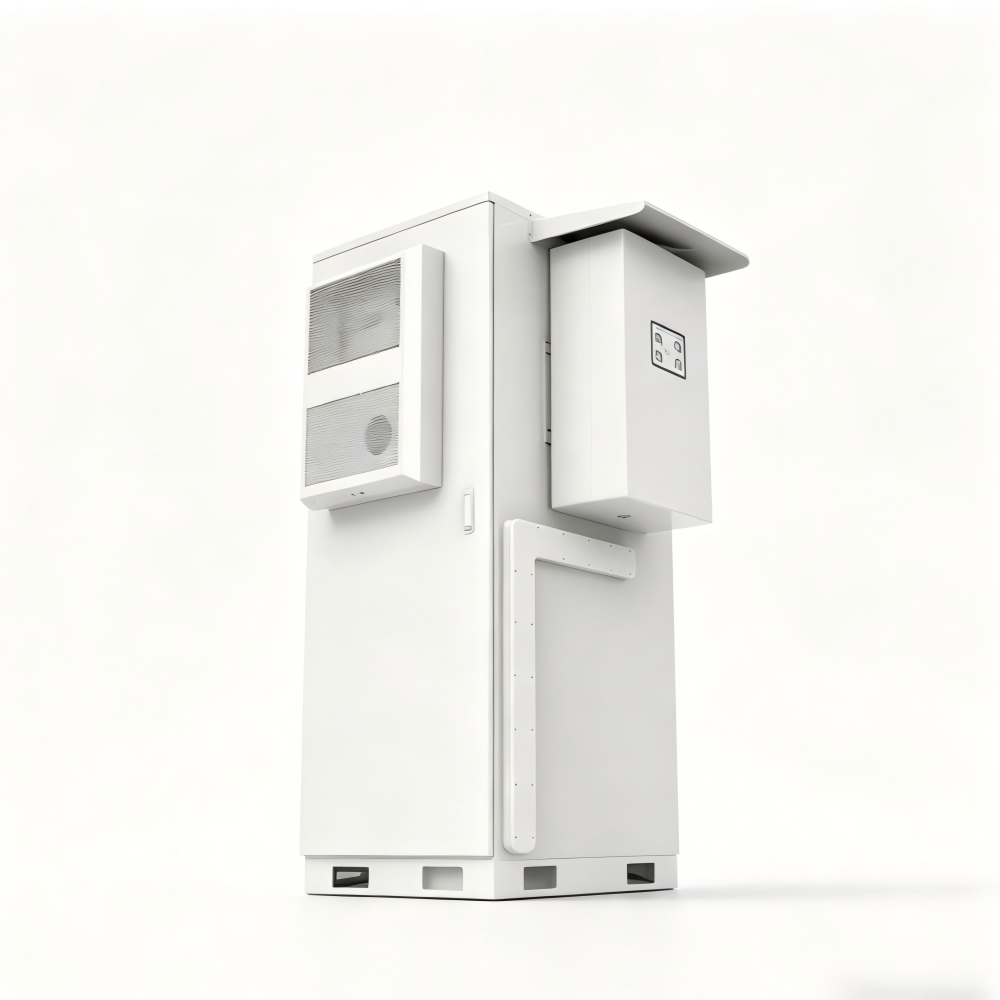

The All-in-One Cabinet Home Energy Storage System is a pre-integrated solution that combines battery modules, Battery Management System (BMS), Power Conversion System (PCS), thermal management, and safety protection systems into a single unit. Featuring integrated industrial design for plug-and-play operation, it is specifically designed for household and commercial users seeking easy installation, high safety, clean aesthetics, and low maintenance requirements.
The All-in-One Cabinet Home Energy Storage System is a pre-integrated solution that combines battery modules, Battery Management System (BMS), Power Conversion System (PCS), thermal management, and safety protection systems into a single unit. Featuring integrated industrial design for plug-and-play operation, it is specifically designed for household and commercial users seeking easy installation, high safety, clean aesthetics, and low maintenance requirements.
| Item | Parameter |
| Rated Energy (kWh) | 261 |
| Standard Voltage (V) | 832 |
| Voltage Range (V) | 728-936 |
| Battery Type | LFP |
| Capacity (Ah) | 314 |
| Lifespan | 8000 cycles (0.5C, 5% -95% DOD, 80% SOH) |
| Charge / Discharge Rate (C) | 0.5 |
| Battery String | 1P52S x 5 |
| Module Cooling Method | Liquid Cooling |
| Optional Inverter | 125kW |
| Power (kW) | 138 |
| Maximum Current (A) | 200 |
| Maximum Efficiency | 98.5% |
| Energy Cycle Efficiency | ≥90% |
| Protection Level | IP55 |
| Corrosion Resistance Grade | C3 is the default option, C4/C5 are optional |
| Fire Protection System | Aerosol / Perfluorohexane |
| Maximum Working Altitude | 3000m (Reduce the rating above 2000m) |
| Relative Humidity | 0-95% (non condensing) |
| Working Temperature Range | -20℃ - +50℃ |
| Communication method | 4G / CAN / RS485 |
| Size(Width x Depth x Height) MM | 1155 X 1415 X 2400 |
| Weight (KG) | 2500 |
| Warranty | 5 Years |
Pre-Integrated Design: All internal wiring and testing are completed at the factory; on-site, simply connect to PV, grid, and loads for operation.
Simplified Installation: Saves over 60% installation time compared to traditional split systems; deployable by 2 technicians within 4 hours.
Plug-and-Play Interfaces: Standardized waterproof connectors with clear labeling for PV, grid, and load connections to prevent miswiring.
Integrated Protective Structure: IP54-rated enclosure, dustproof and waterproof, suitable for various environments like garages and basements.
Built-In Fire Suppression: Standard equipped with heptafluoropropane or novec 1230 automatic fire extinguishing system with cell-level thermal runaway detection and isolation.
Electrical Safety Design: Complete isolation between DC and AC sides, featuring lightning protection, surge protection, and leakage protection.
Efficient Thermal Management: Intelligent variable-frequency AC/heat pump system ensures stable operation across a wide temperature range of -20°C to 50°C.
Low-Noise Design: Operating noise < 45 dB (measured at 1 meter), suitable for indoor or semi-outdoor installation.
Adaptive Energy Saving: Automatically adjusts cooling power based on load and temperature, with standby power consumption < 20W.
Maintenance-Free Design: Fully sealed structure, no regular cleaning or upkeep required.
Clear Status Overview: 7-inch touchscreen displays real-time operational data with multi-language interface support.
Remote Intelligent Management: Real-time monitoring via mobile app/web portal, supports OTA remote updates and fault diagnosis.
General Households
New Residential Projects
Old Electrical Circuit Retrofits
Aesthetic-Sensitive Spaces
Community Convenience Stores/Small Supermarkets
Small Business Offices
Rural B&Bs & Inns
EV Charging Station Integration
Overseas Market Users
Rental Housing Projects
Emergency & Disaster Relief
Educational Institutions
