Introduction

The energy storage container shell is a customized, high-strength container enclosure specially designed for battery energy storage systems (BESS). Different from standard shipping containers, it is structurally optimized and functionally upgraded to adapt to large-scale battery integration, thermal management, fire protection, and outdoor long-term operation. Adopting welded steel frame and integrated thermal insulation structure, the shell provides a safe, stable, dustproof and waterproof operating environment for internal batteries, PCS, cooling systems and control equipment. It supports modular pre-installation, rapid transportation and on-site plug-and-play deployment, which greatly shortens the construction cycle of energy storage projects.

Parameter Specification

Specification	Parameters
Name	Energy storage System Container
Material	Q235B
External Dimensions(LWH) (mm）	605824382591
Brand name	Anhui HN
Size	20ft
Certification	CSC/LR certification
Application	Energy storage equipment storage
Anti-corrosion Class	C4
Ingress Protection	IP54
altitude	≤2000m
Operating temperature	-20℃ ~ +55℃

Key Features

High Structural Strength: Built with heavy-duty galvanized steel frame and corrugated steel panels, with reinforced corner castings. It meets ISO container stacking and lifting standards, resisting deformation during long-distance transportation and multi-times hoisting.
Excellent Environmental Adaptability: Equipped with integrated thermal insulation layer, waterproof and dustproof structure. Reaching IP54/IP55 protection grade and C3-C5 anti-corrosion grade, it adapts to high temperature, low temperature, coastal humidity and desert harsh environments.

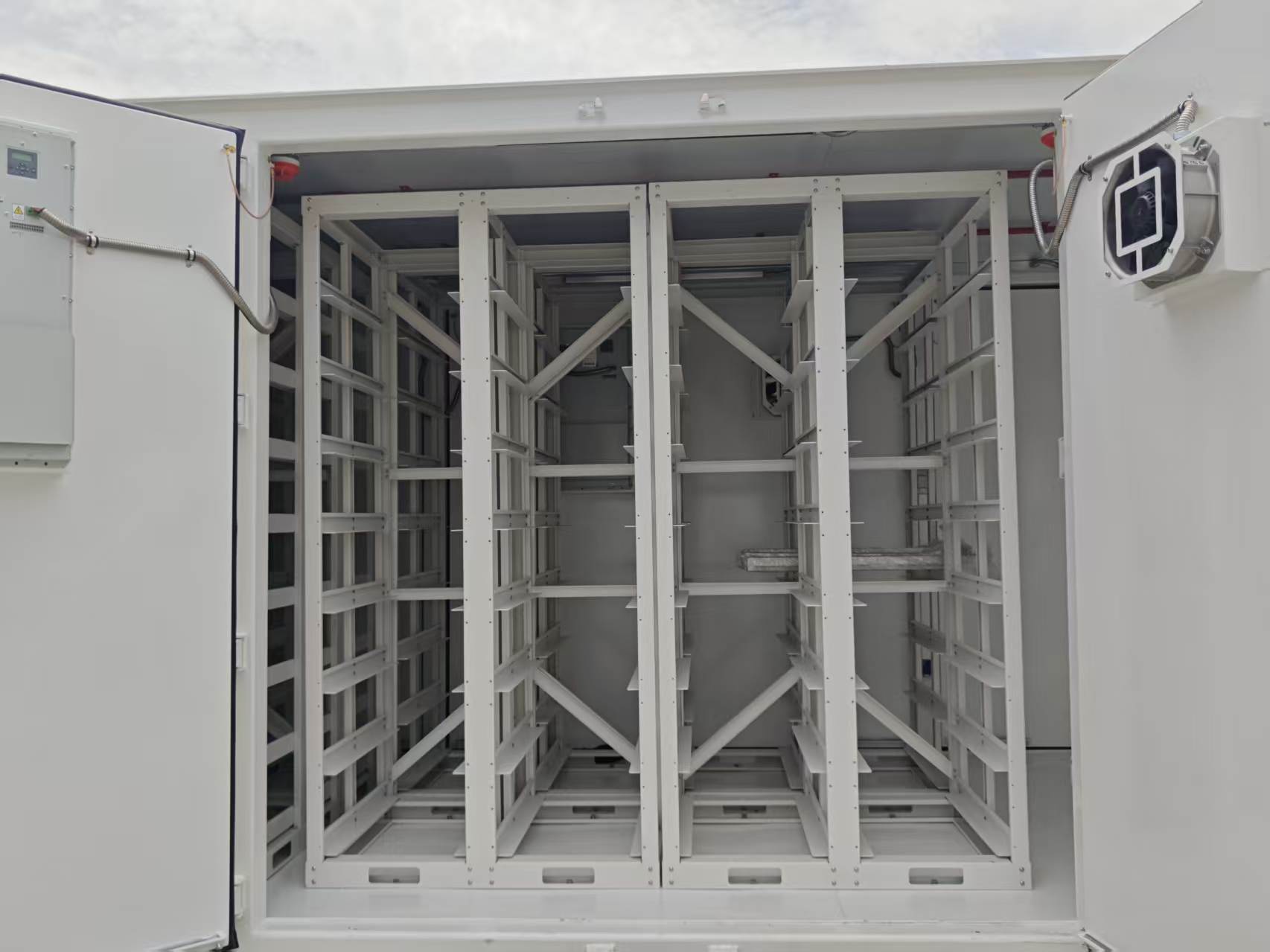

Professional Energy Storage Optimization: Reserved standard openings for ventilation, cooling, fire suppression, wiring and access control. The internal layout is reasonable, which facilitates battery cabinet arrangement, heat dissipation and daily equipment maintenance.
Modular & Fast Deployment: Fully prefabricated in factory, supporting integrated assembly of energy storage equipment. On-site installation is efficient, no complex civil engineering required, realizing rapid grid connection and power generation.
High Safety & Long Service Life: Adopts anti-corrosion paint and weather-resistant materials, effectively avoiding rust and aging. The overall structure is stable and fire-resistant, ensuring long-term safe operation of energy storage systems.
Customizable Design: Supports customized size, appearance, insulation thickness, protection level and functional configuration according to project requirements.

Applications

Grid Energy Storage: Used for power grid peak shaving, valley filling, frequency regulation and power supply stability improvement.
New Energy Power Station: Matches solar and wind power plants to stabilize output power and solve renewable energy intermittency problems.
Industrial & Commercial Energy Storage: Applied in factories, parks and commercial buildings for peak-valley arbitrage, power demand management and emergency backup power.
Off-grid & Micro-grid Systems: Suitable for remote mountainous areas, islands, mining areas and frontier projects to build independent power supply systems.
Emergency & Backup Power: Provides stable standby power for data centers, communication base stations, hospitals and key engineering projects.
Mobile Energy Support: Used for temporary power supply of engineering construction, outdoor activities and disaster rescue scenarios.
